(Solved): ANSWER a and c please (a) Calculate the DC values of IC,IE,VCE,VB and VC. ...

ANSWER a and c please

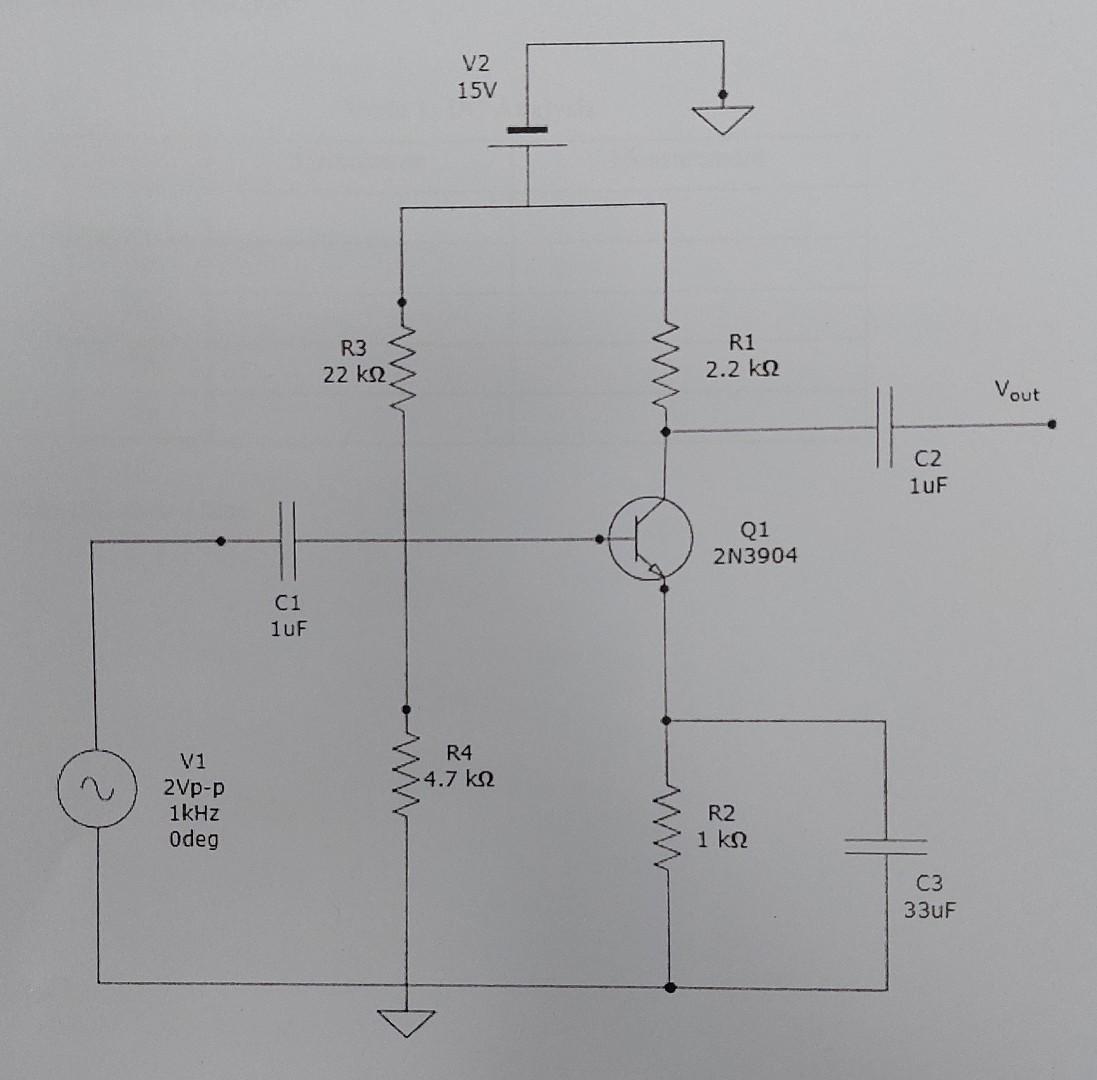

(a) Calculate the DC values of $${\mathrm{I}}_C,{\mathrm{I}}_{\mathrm{E}},{\mathrm{V}}_{\mathrm{CE}},{\mathrm{V}}_{\mathrm{B}}$$ and $${\mathrm{V}}_{\mathrm{C}}$$. [15 Marks] $$[\mathrm{CO}1,\mathrm{PO}5,\mathrm{P}3]$$ (b) Construct the DC configuration using appropriate laboratory equipment and proof answer in (a) by measurement. [15 Marks] $$[\mathrm{CO}2,\mathrm{PO}5,P5]$$ (c) Calculate the $$\mathrm{AC}$$ values of $$\mathrm{Av}$$ [10 Marks] [CO1, PO5, P3] (d) Construct the $$\mathrm{AC}$$ configuration using appropriate laboratory equipment. Proof answer in (c) by measurement and sketch the waveforms. [10 Marks] [CO2, PO5, P5]
